Description
Standard Equipment

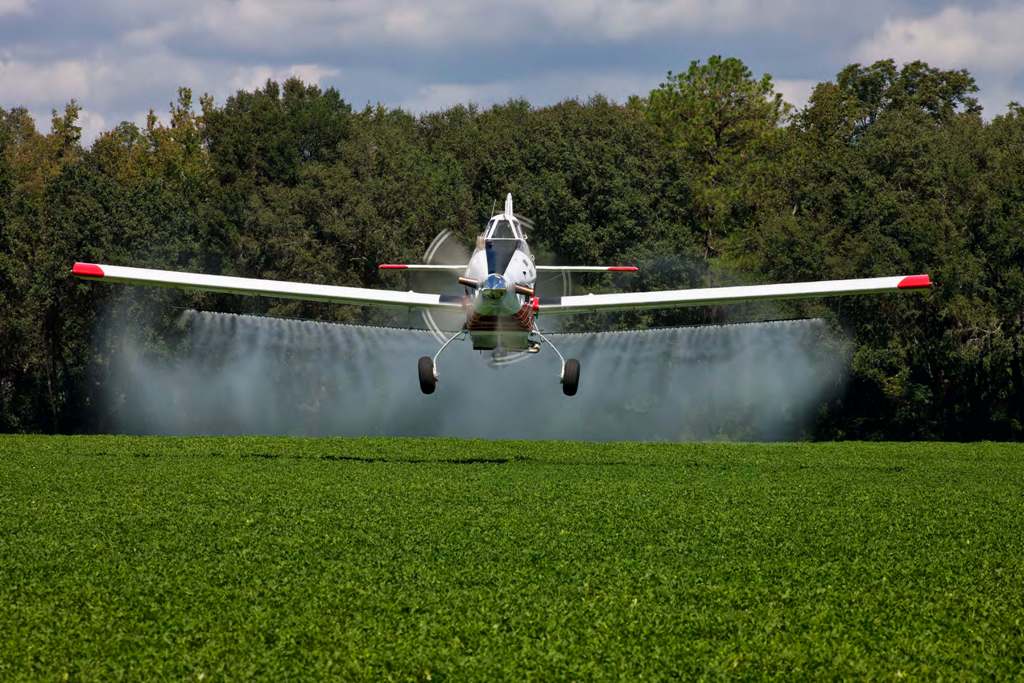

The standard Thrush 710 features a 5-blade 115-inch Hartzell reversible propeller; 250 amp starter/generator; single cockpit; MVP-50T glass panel display, spray system with 41-inch stainless steel gatebox for dry applications (seeding and fertilizer) and emergency liquid dump capabilities; 2-inch spray system; 5-blade Weath-Aero cockpit adjustable pump fan; 3-inch side loader; wing-tip navigation & strobe lights; cockpit lighting; 228-gallon fuel system; windshield wiper and washer; 29 inch high flotation tires and wheels with dual caliper Cleveland brakes; and Zee Air Conditioner and Cabin heat. Now comes Standard with a Garmin G5 Electronic Flight Information System (EFIS) and a Storm Shield front Windscreen!
Additional Options
- The Thrush 710P is available with the following optional airframe equipment installed at the factory: Dual cockpit, dual controls instrument panel with observer’s seat, or an observer’s seat only, Aft bubble windows, fire extinguisher, single-point refueling, and a ferry fuel system.
- The following dispersal equipment is also available as options: Smoker, stainless steel spreader, Transland hydraulic fire gatebox, electric fan brake model 111F, hopper rinse system, stainless steel booms, Digital hopper level indicator, and multiple different nozzle configurations on request.
- The following optional lighting, electrical, and avionics installations are available as well: Left and right wing landing lights, night working lights, leading edge lights, clock, map light, Various Garmin Comms/transponders
PRELIMINARY SPECIFICATIONS AND PERFORMANCE DATA
Length | 35 feet 5 inches | 10.787 meters |
Height | 10 feet 4 inches | 3.14 meters |
Wing Span | 54 feet | 16.46 meters |
Tread Width | 10 feet 4 inches | 3.14 meters |
Fuel Capacity | 228 gallons | 863 liters |
Empty Weight | 6,600 pounds | 2,994 kilograms |
Typical Operating Weight | 14,150 pounds | 6,148 kilograms |
Hopper Capacity (Dry) | 95 cubic feet | 2.69 cubic meters |
Hopper Capacity (Liquid) | 710 gallons | 2,687 liters |
Working Speeds | 90-150 mph | 145-241 kph |
Stall Speed Flaps/No Flaps | 90/94 mph | 145/151 kph |
VNE | 220 mph | 355 kph |
Sea Level Rate of Climb at 14,150 lbs | 850 fpm | 259 mpm |
Take-Off Distance at 14,150 lbs | 1,598 feet | 487 meters |
Landing Distance as Usually Landed | 600 feet | 182.8 meters |
Landing Distance as Usually w/Reverse | 400 feet | 121.9 meters |
Fuel Consumption | 80-85 gph | 303-322 lph |
Cruising Speed at 55% Power | 150 mph | 241 kph |
Ferry Range at 55% power and 150 mph at 7,500 feet | 515 miles | 828 kilometers |
