Description
Standard Equipment

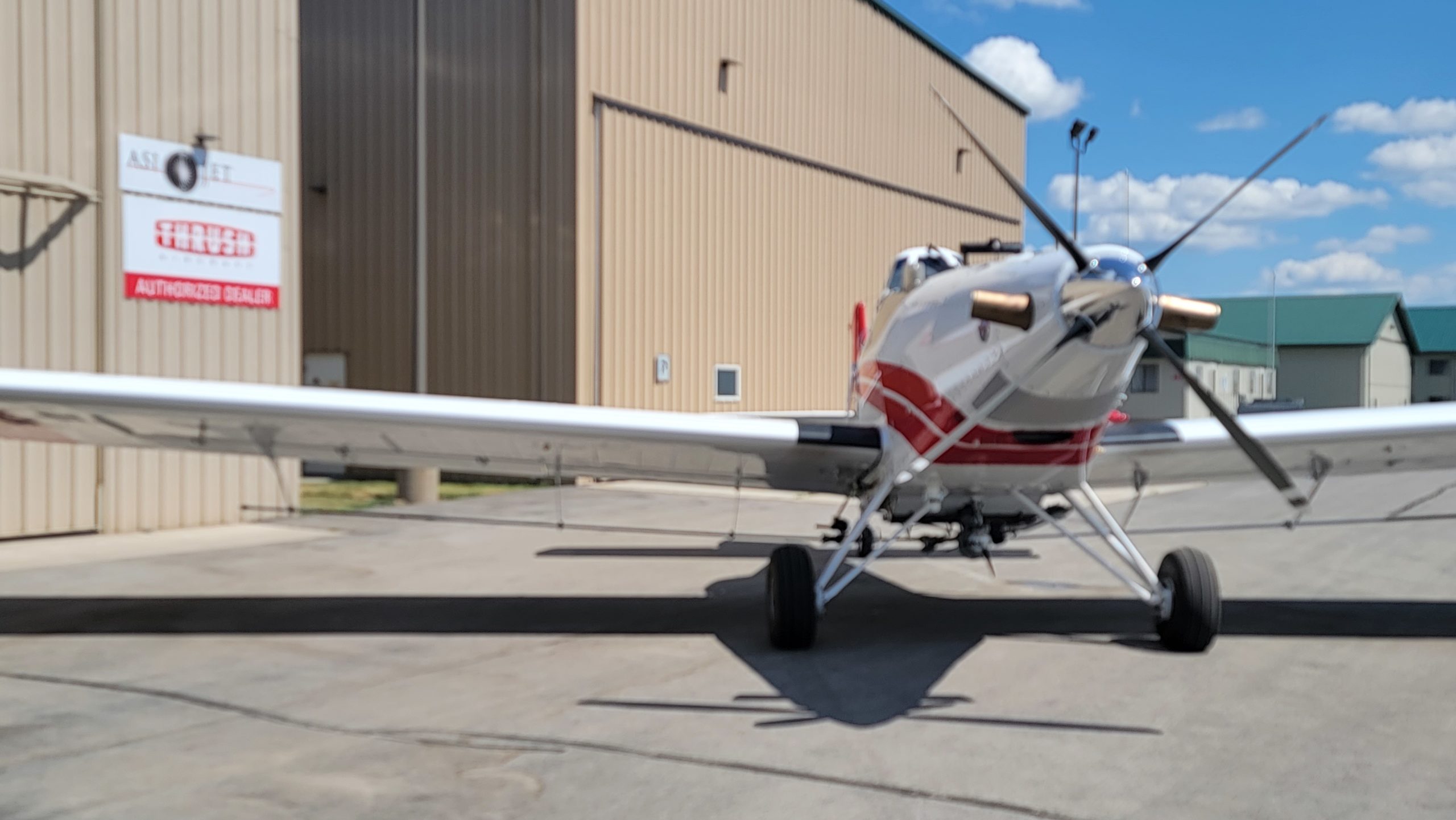

Equipped with a new GE H80 (800 SHP) turboprop engine; Hartzell 102-inch diameter, four-blade, reversible, constant-speed propeller; 510-gallon spray system with 41-inch stainless steel gatebox for dry applications (seeding and fertilizer) and emergency liquid dump capabilities; MVP-50T glass panel display, two-inch stainless steel spray system; five-blade Weath-Aero cockpit adjustable pump fan; three-inch side loader; streamlined aluminum booms; wingtip navigation and strobe lights; cockpit lighting; 228-gallon fuel system; windshield wiper and washer; 29-inch-high flotation tires and wheels with dual-caliper Cleveland brakes; and Zee air conditioner and cabin heat. Now standard equipment includes a Garmin G5 Electronic Flight Information System (EFIS)!
Additional Options
- The Thrush 510G is available with the following optional airframe equipment installed at the factory: Dual cockpit, dual control instrument panel with an observer’s seat, vortex generators, Aft bubble windows, fire extinguisher, single-point refueling, and a ferry fuel system.
- The following dispersal equipment is also available as options: Smoker, stainless steel spreader, Transland hydraulic fire gatebox, electric fan brake model 111F, hopper rinse system, stainless steel booms, REABE hopper level indicator, and multiple nozzle configurations on request.
- And, every 510G has the following optional instruments, electrical, and avionics installations available as well: Left and right wing landing lights, night working light, leading edge light, clock, map light, Garmin GPS/VHF/430 Comm, transponder, Garmin SL-40 Comm, Mid-Continent Instruments turn & bank indicator, United Instruments vertical speed indicator, Kelly Manufacturing directional gyro, Kelly Manufacturing artificial horizon, Ag Laser laser altimeter, Ameri-King blind encoder, Kenwood HF radio, and an Ameri-King 406 Mhz ELT.
PRELIMINARY SPECIFICATIONS AND PERFORMANCE DATA | ||
• Length | 32 feet 4 inches | 9.854 meters |
• Height | 9 feet 4 inches | 2.843 meters |
• Wing Span | 47 feet 6 inches | 14.478 meters |
• Wing Area | 365 square feet | 33.9 square meters |
• Width of Main Landing Gear | 9 feet | 2.74 meters |
• Fuel Capacity | 228 gallons | 863 liters |
• Empty Weight | 4,700 pounds | 2,132 kilograms |
• Certified Operating Weight | 10,500 pounds | 4,763 kilograms |
• Hopper Capacity (Dry) | 66 cubic feet | 1.93 cubic meters |
• Hopper Capacity
(Liquid spray system) |
510 gallons | 1930 liters |
• Working Speeds | 90-150 mph | 145-241 kph |
• Stall Speed as Usually Landed | 55 mph | 89 kph |
• Never Exceed Speed | 188 mph | 303 kph |
• Sea Level Rate of Climb at 6,000 lbs | 1,400 fpm | 426.7 mpm |
• Sea Level Rate of Climb at 10,500 lbs | 680 fpm | 207.3 mpm |
• Take-Off Distance at 10,500 lbs | 1,500 feet | 457 meters |
• Landing Distance as Usually Landed | 550 feet | 167.6 meters |
• Landing Distance as Usually Landed
w/Reverse |
350 feet | 106.7 meters |
• Fuel Consumption | 45-60 gph | 170-227 lph |
• Cruising Speed at 55% Power | 159 mph | 256 kph |
• Ferry Range at 45% power a
135 mph at 7,500 feet |
800 miles | 1,287 kilometers |
